| Luogo di origine: | Cina |
| Marca: | SINOTRUK SITRAK |
| Certificazione: | ISO/3C/BV/IFA/SGS |
| Numero di modello: | ZZ1257M4341W |
| Quantità di ordine minimo: | 1 unità |
|---|---|
| Prezzo: | Negoziabile |
| Imballaggi particolari: | Ceretta in nave sfusa, nave roro, container |
| Tempi di consegna: | 15 giorni lavorativi |
| Capacità di alimentazione: | 10.000 unità al mese |
| Nome del prodotto: | Autocisterna dell'olio | Modello: | ZZ1257M4341W |
|---|---|---|---|
| Tipo di unità: | LHD 6X4 | Norma sulle emissioni: | Euro 2 |
| Motore: | WD615.69, 336HP | Capacità corporea del serbatoio: | 16-25CBM |
| Evidenziare: | SINOTRUK HOWO gas tanker truck 6X4,Oil tank truck 16-25CBM capacity,LHD Euro2 gas tanker 336HP |
||

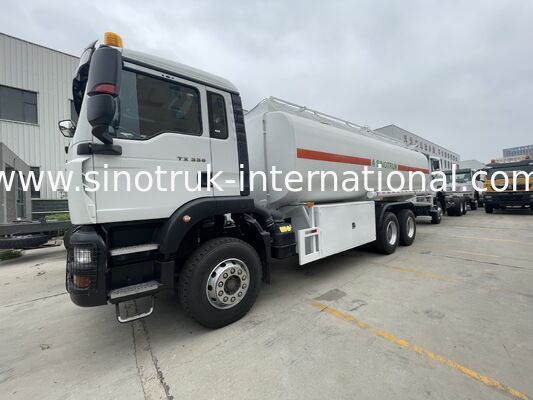

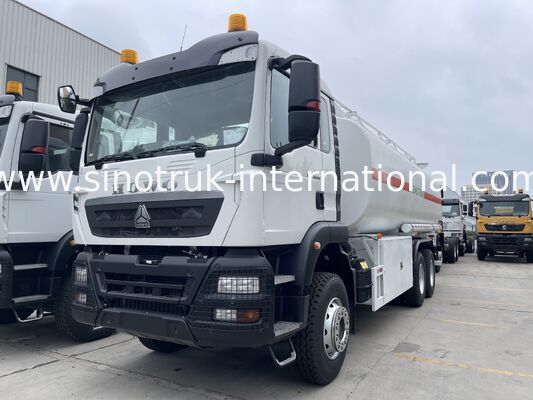

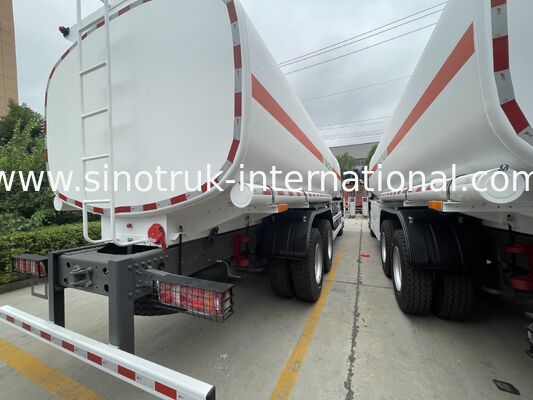

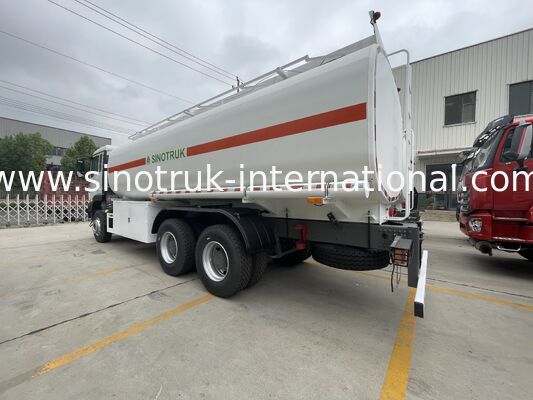

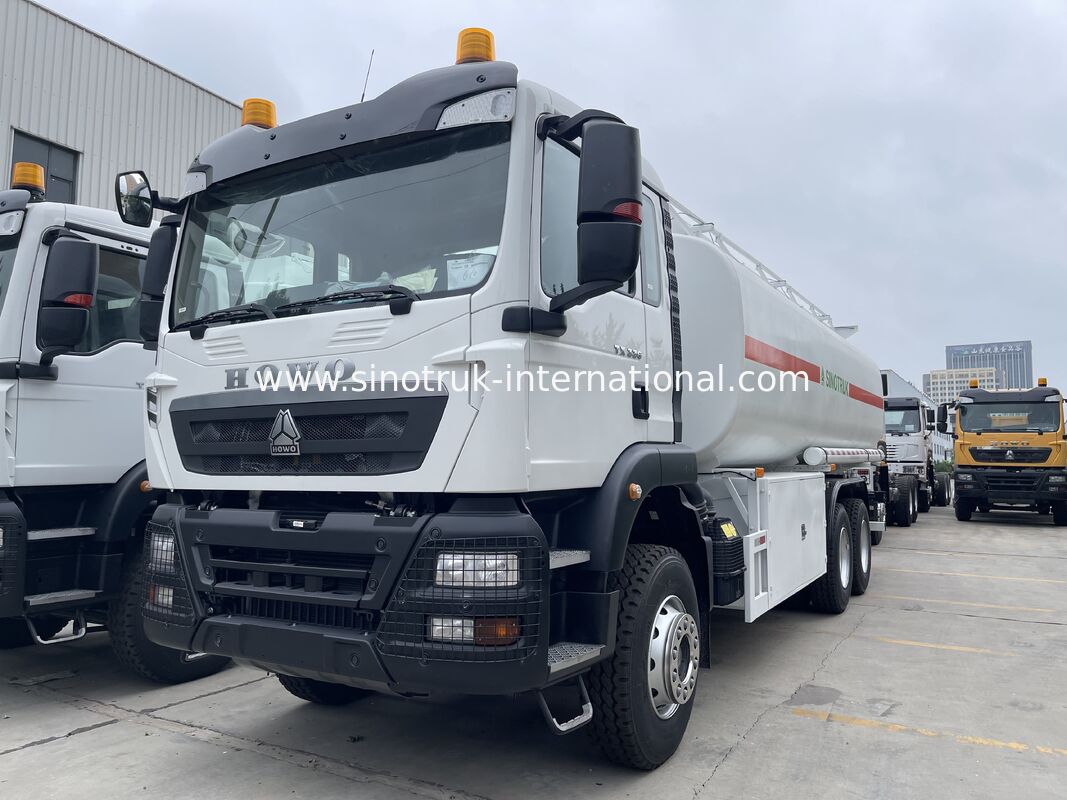

SINOTRUK HOWO 16-25CBM Oil Tank Truck 6X4 LHD Euro2 336HP Gas Tanker Truck
Description:
The fuel tank truck mainly for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil) transportation and storage. According to a variety of gas or oil, and the use of different environment with the oil, pump oil, a variety of oil equipment, put the function. Tanker special part is composed of a tank, PTO, drive shaft, gear pump, pipeline system components. Pipes system is composed of an oil pump, three through four ball valve, two-way valve. Filter pipe.
Our Oil Tank Truck adopts advanced butt welding technology, the
high pressure gas after the forming of the tank test leak detection, the tank has high
strength, stable center of gravity, vehicle safety and stable; tank welding after shot
blasting pretreatment process, rust, paint adopts advanced baking technology, durable and
beautiful appearance.
Specification:
| SINOTRUK HOWO 16-20CBM Oil Tank Truck 6X4 LHD Euro2 290HP Gas Tanker Truck | |
| Chassis Model | ZZ1257M4341W |
| Drive Type | 6×4 |
| Engine | WD615.69, 336HP |
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
| Transmission | HW15710(10 forwards & 2 reverses) |
| Front Axle | HF9(1X9 Tons) |
| Driving Axle | HC16(1X16 Tons) |
| Clutch | hydraulically operating with air assistance |
| Rim/ Tire | 11.00R20, Radial tyre |
| Wheel base | 4400+1350(mm) |
| Capacity of tank body | 16-25CBM |
| Thickness of tank body | 5mm,With 5 cabin |
| Basic setup | Gear oil pump, flow meter, flash hider, fire extinguisher |
| Overall dimension | 9200×2500×3150mm |
| The curb weight | 11940(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 95km/h |
| Color | White, red, green, golden and so on. |
Applications:
The Oil tank truck is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)
transportation and storage.
Competitive Advantage:
1) Our Oil tank truck with advanced butt welding technology, after the forming
of the tank high pressure gas leak detection, the tank has a high intensity, stable center of gravity,
safe and stable vehicle characteristics;
2) Shot blasting pre treatment process after welding tank, rust, paint adopts the advanced baking technology, durable and beautiful appearance. Independent sub positions,
3) Divided into different oil products, chemicals, food, as liquid food truck, chemical liquid truck,
insulation liquid vehicles, dangerous goods transport vehicles, the asphalt transportation vehicle
4) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance
5) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,
150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees
flowers and plants
6) with all kinds of truck model, which can fulfill your requirement
7) the key parts adopt the world's top technology products
8) based on strong technical support and top level technology make the trucks with high quality and
more reliable
9) competitive price, cost-effective
