Name: HOWO 140HP Left-Hand Drive Cargo Truck Chassis with 8-12tons Load Capacity
Brand: SINOTRUK INTERNATIONAL CO., LTD.
SKU: ZZ1167G3815C1
Price: 52,930.00 USD
Availability: InStock

Casa Prodotti Camion di bassa potenza

HOWO 140HP Left-Hand Drive Cargo Truck Chassis with 8-12tons Load Capacity

Dettagli:

Luogo di origine:	Cina
Marca:	SINOTRUK
Certificazione:	ISO/3C/BV/IFA/SGS
Numero di modello:	ZZ1167G3815C1

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 unità
Prezzo:	Negoziabile
Imballaggi particolari:	Ceretta in nave sfusa, nave roro, container
Tempi di consegna:	35 giorni lavorativi
Termini di pagamento:	T/T, L/C
Capacità di alimentazione:	3, 000 unità al mese

Contatto

Descrizione di prodotto dettagliata

Modello:	ZZ1167G3815C1	Assale anteriore:	3,2 tonnellate
Asse di azionamento:	8 tonnellate	Cambio:	WLY6TS55
Pneumatico:	8.25R20	Capacità di carico:	8-12 t

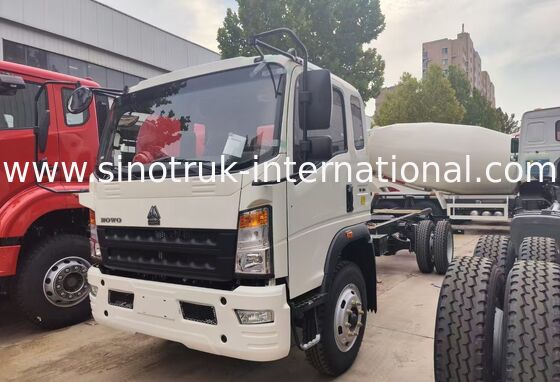

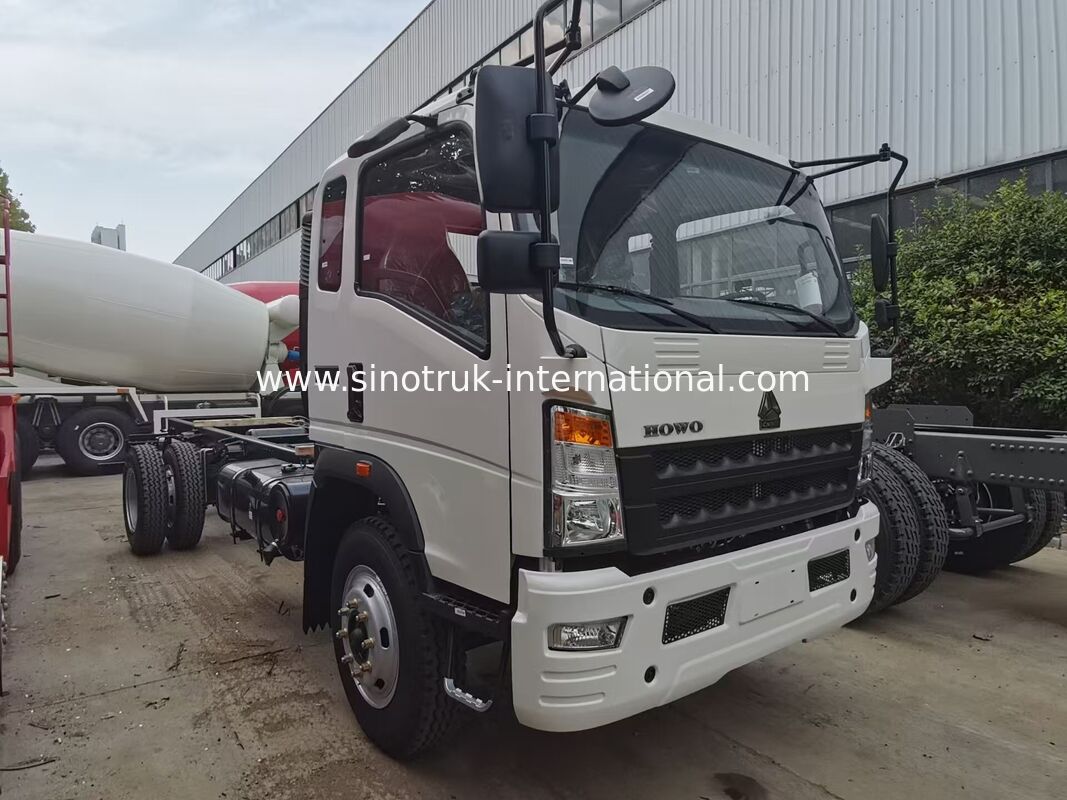

HOWO 140HP Left-Hand Drive Cargo Truck Chassis

Model: ZZ1167G3815C1
This HOWO light commercial cargo chassis is a mature, cost-effective transportation platform specially designed for medium-duty haulage tasks. Perfectly matching the road and fuel conditions of Africa, Djibouti, Guinea, Middle East and other emerging markets. It supports flexible body refitting, including general cargo boxes, water tanks, fuel tanks, refrigerated containers, small dump bodies and other customized upper installations.

Exterior Dimensions & Load Parameters

Specification	Value
Wheelbase	3800mm
Overall Dimensions	6995mm * 2300mm * 2650mm
Curb Weight	5630kg (5.63 tons)
Recommended Payload	8 tons to 12 tons
Standard Cargo Body Length	4850mm

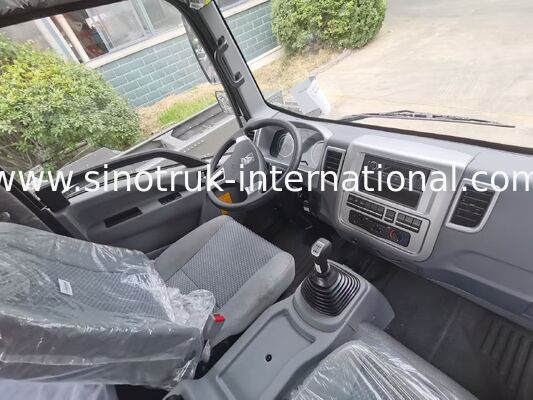

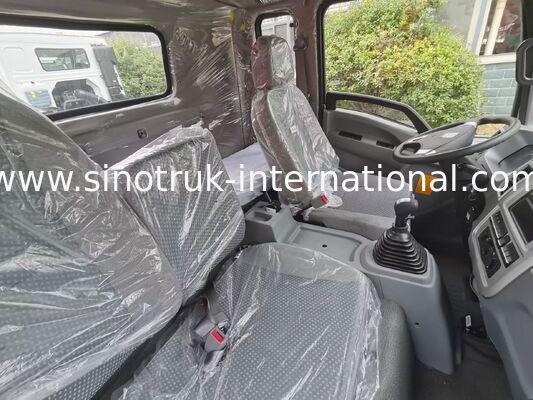

Comfortable Driving Cab

The truck adopts a spacious two-seat cab integrated with a sleeper berth. Factory-fitted air conditioning system is equipped as standard, effectively cooling the cabin under high-temperature tropical climates. The cab structure features solid anti-collision design, offering safe and relaxed driving experience for long-distance continuous runs.

Reliable Power & Transmission Assembly

Engine: YC4E140-33 Yuchai diesel engine, rated power 140HP, complying with Euro 3 emission standard. This engine boasts stable torque output, low failure rate, strong tolerance to low-quality diesel oil, and moderate fuel consumption.
Gearbox: WLY6TS55 manual transmission with 6 forward gears. The gear shifting mechanism is precise and smooth, with high wear resistance and long service life under frequent start-stop transport scenarios.

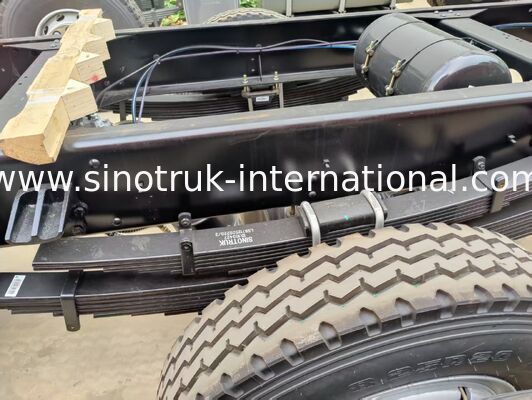

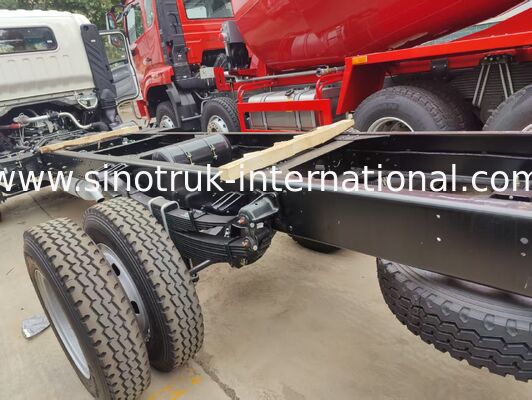

Heavy-Duty Axle, Suspension & Tire Setup

Front Axle: 3.2 Ton rated load capacity
Rear Drive Axle: 8 Ton rated load capacity with reinforced housing
Suspension: 9/12+9B multi-leaf spring structure for excellent shock absorption on bumpy roads
Tires: 8.25R20, 16Pr heavy-duty radial tires with thickened walls for enhanced load bearing and puncture resistance

Auxiliary Standard Configuration

A large-capacity 220-liter steel fuel tank is installed, enabling long-distance travel without frequent refueling stops. All core structural components undergo strict factory quality inspection to guarantee stable performance in harsh working environments, making this chassis a top pick for local freight fleet investors.

Key Advantage: Cost-effective solution with proven reliability in emerging markets, designed for flexible body customization and harsh operating conditions.
