INTERNAZIONALE CO., SRL DI SINOTRUK.
Sales & Support:
 |
| Luogo di origine: | Cina |
| Marca: | SINOTRUK HOWO |
| Certificazione: | ISO/3C/BV/IFA/SGS |
| Numero di modello: | ZZ1257V3247B1 |
| Quantità di ordine minimo: | 1 unità |
|---|---|
| Prezzo: | USD47500-USD48000/UNIT)negotiation |
| Imballaggi particolari: | Nudo o ceretta in roro o nave sfusa |
| Tempi di consegna: | 25 giorni lavorativi dopo aver ricevuto il pagamento anticipato |
| Termini di pagamento: | L/C,T/T,Western Union |
| Capacità di alimentazione: | 2,000units al mese |
| Nome del prodotto: | Autobetoniera | Modello: | ZZ1257V3247B1 |
|---|---|---|---|
| Tipo di unità: | LHD 6X4 | Norma sulle emissioni: | Euro 2 |
| Motore: | WD615.47.371HP | Capacità corporea del serbatoio: | 10CBM |
| Evidenziare: | 10CBM concrete mixer truck with warranty,371HP Sinotruk mixer truck 6x4,LHD concrete mixer truck stable efficient |
||

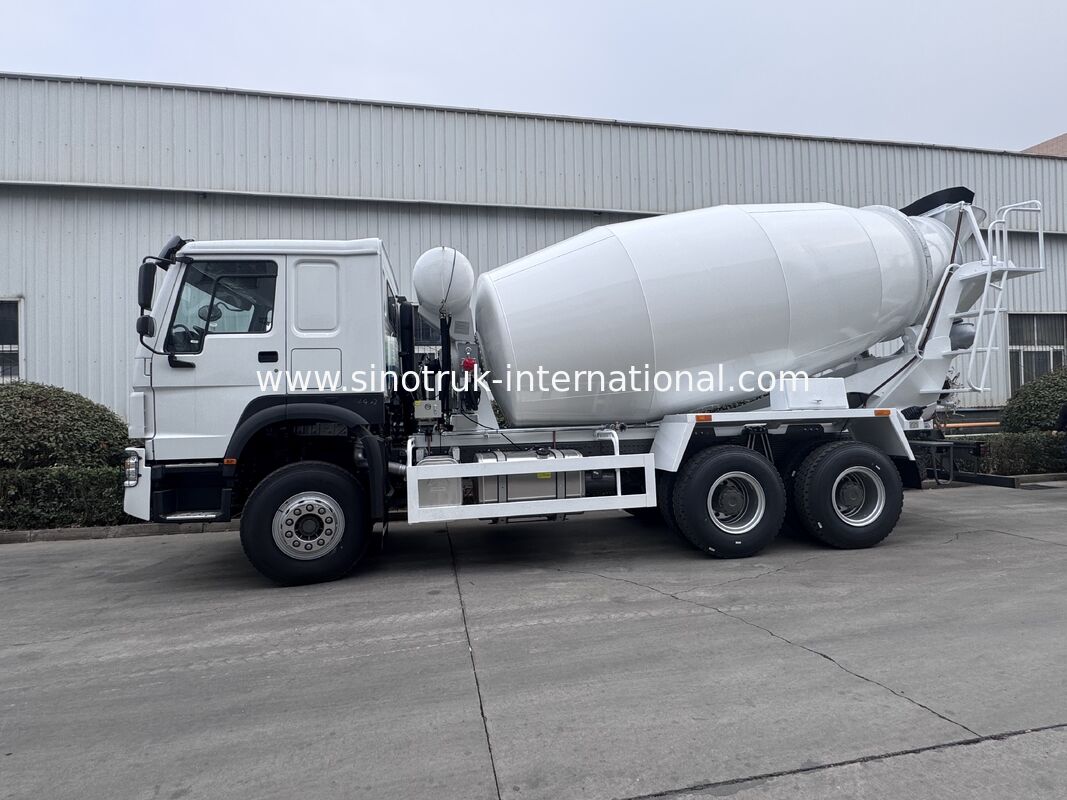

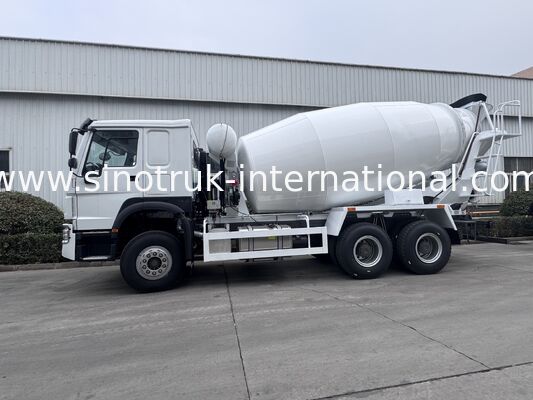

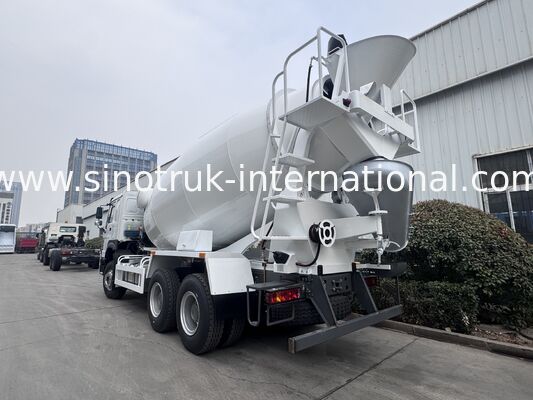

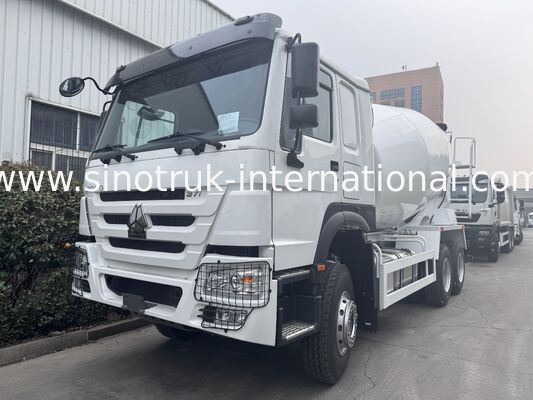

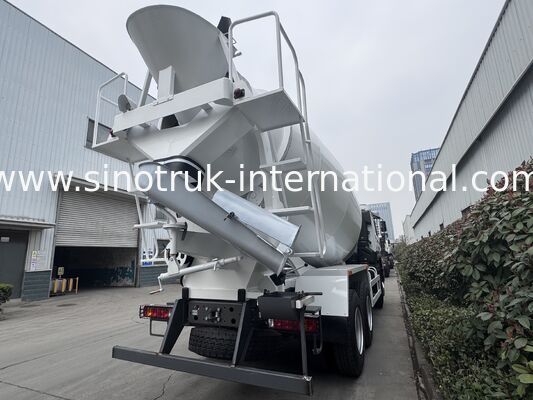

HOWO SINOTRUK Concrete Mixer Truck 10CBM 371HP 6X4 LHD Stable and efficient
Description:
SINOTRUK HOWO Concrete Mixer Truck 10CBM 371HP 6X4 LHD
The HOWO Concrete Mixer Truck adopts HOWO chassis, equipped with H77L single berth cabin, exclusively for export is equipped with European 3 or Electronic common rail, EU .SINOTRUK independent research and development of engine, standard
German imported ZF steering, HOWO 10 and 12 gear box,HF9 tons of front axle, HC16 or AC16
rear axle, carrying capacity great to meet the needs of customers.
The mixing tank body is made of high strength wear-resistant steel plate, cage type mold
are integrally formed to ensure that the flange, sections of the cylinder body and
rolling the coaxial degree and circle beat, to ensure smooth operation of the vehicle.
The tank body adopts the double helix blade, moderate density and taper before the
gateball symmetric stirring plate and tank mouth at the installation of blades and a
material guide vanes, resorted to materials to be more even faster.
Specification:
|
SINOTRUK HOWO Concrete Mixer Truck 6CBM 290HP 6X4 LHD ZZ5257GJBM3247W |
||||
| Model | ZZ1257V3247B1 | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||
| Cabin | HW76 | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×HF9 ( 9 Tons) | |||
| Driving Axle | HC16, 16Tons | |||
| Steering | ZF8098 hydraulic steering with power assistance. | |||
| Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
| Wheel base | 3225+1350(mm) | |||
| Overall dimension | 8204×2496×3850(mm) | |||
| Tank body Capacity |
10CBM |
|||
| The curb weight | 12800(Kg) | |||
| Gross weight | 41500kg | |||
| Max. speed | 102km/h | |||
| Color | White, red, green, golden and so on. | |||
Applications:
t’s suitable for agitating and transiting concrete, for construction site, road repairing and some other infrastructure construction business.
Competitive Advantage:
1) Leading technology, complete functions, excellent performance, reliable quality, easy to operate Operation.
2) Optimization of body structure, special mold production, beautiful appearance, concrete mixing,
Uniform discharge and low residual rate.
3) Imported hydraulic pump, hydraulic motor, reducer.
4) Adopt high strength steel plate, long service life.
5) Overall structure optimization, low center of gravity, high operation efficiency.
6) Wide range of products, tank capacity of 6 ~ 18 cubic meters.
7) Choose a variety of auxiliary devices.
8) Match all concrete mixer chassis.
9) Based on strong technical support and top technology to make the truck with high
More reliable quality
10) Competitive price, cost-effective
11) Fast and efficient spare parts supply, to bring you more convenient
12) Fast delivery time, we can accurately and reasonably arrange production according to your needs soon
13) Professional import and export transaction procedures make customs clearance more efficient
